      API

      Obtain device and incident detail programmatically

      Obtaining an API Key

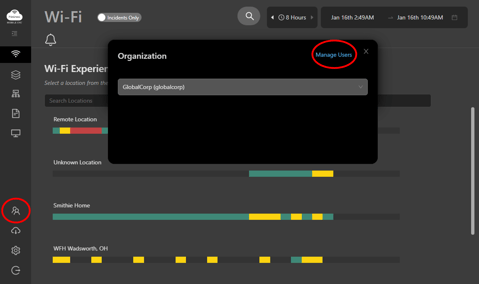

      • 7SIGNAL utilizes OAuth 2.0, the industry-standard protocol for authorization. Obtain an API key and secret through Mobile Eye by navigating to the Users icon along the left navigation bar, then clicking Manage Users.
      API 1

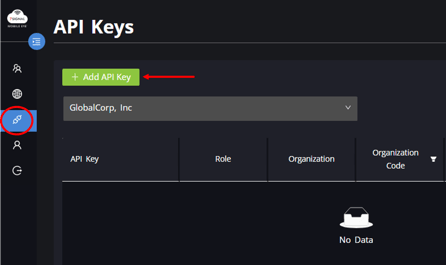

      • Then click the API Key icon along the left, and the Add API Key button at the top.
      API 2

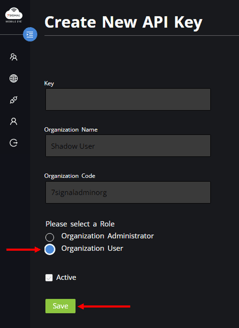

      • Select either Administrator or User and click Save.  Users will not be able to make API calls to Configuration endpoints, once 7SIGNAL makes them available.
      API 3

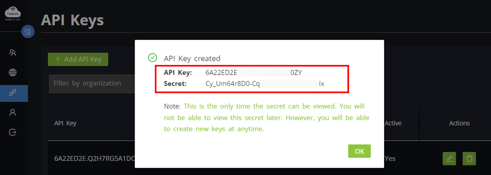

      • Copy and paste and save your API key and secret. You will use it in the token exchange request/response process to connect to the API.

      API 4

      Public Link to Online Documentation

      https://api-v1.7signal.com/swagger-ui/index.html#/

      Endpoints Available with Sample Output


      https://api-v1.7signal.com/eyes/ Returns the organization name, total device count, and license summary. Sample output below.
      {
        "agents": {
          "organizationName": "7signal2",
          "deviceCount": 3,
          "licenseSummary": {
            "packageName": "ENTERPRISE",
            "totalLicenses": 2500,
            "usedLicenses": 2,
            "freeLicenses": 2498
          }
        }
      }
      https://api-v1.7signal.com/eyes/agents Returns detail for each device in the system. Results are paginated.
      {
        "pagination": {
          "pages": 1,
          "page": 1,
          "total": 3,
          "perPage": 250
        },
        "results": [
          {
            "id": "090e52c0-1429-4aad-bf70-ce650a2dfab8",
            "name": "CAMULLI",
            "manufacturer": "LENOVO",
            "model": "20QVS0FN00",
            "platform": "windows",
            "version": "10.0.22621",
            "driverProvider": "Intel - Intel(R) Wi-Fi 6 AX200 160MHz",
            "driverVersion": "22.170.0.3",
            "mac": "74:D8:3E:91:91:19",
            "lastSeen": 1673886395413,
            "lastSsid": "#corpnetwork5",
            "lastTestSeen": 1673886387000,
            "lastAgentVersion": "v1.19.0+59",
            "remoteIpAddress": "65.31.8.238",
            "numberOfTxSpatialStreams": 2,
            "numberOfRxSpatialStreams": 2,
            "lastDefinedLocationId": "bfc88029-c162-48c5-b27c-81cfe0c63842",
            "lastBssid": "a8:bd:27:87:e6:10",
            "localIpAddress": "192.168.0.139",
            "marketModel": "20QVS0FN00"
          },
      https://api-v1.7signal.com/incidents/agents Returns a list of incidents that have occurred. Date/time range may be specified. Default range is the last 24 hours.
      {
        "range": {
          "to": 1673887213434,
          "from": 1673800813435,
          "total": 10,
          "duration": 86399999
        },
        "results": [
          {
            "id": "d7191d76-0be8-42e5-b500-96dffe59b75c",
            "startTimestamp": "2023-01-15T18:25:00.000Z",
            "asOfTimestamp": "2023-01-15T21:20:00.000Z",
            "endTimestamp": "2023-01-15T21:20:00.000Z",
            "timestampDeterminedToBeIncident": "2023-01-15T18:30:00.000Z",
            "organizationName": "7signal2",
            "type": "SEVEN_MCS",
            "location": "bfc88029-c162-48c5-b27c-81cfe0c63842",
            "network": "#corpnetwork5",
            "band": "5.00",
            "countImpacted": 1,
            "populationCount": 1,
            "thresholds": {
              "warningThreshold": 10,
              "criticalThreshold": 7,
              "successRateThreshold": 90,
              "minPopulationCount": 1,
              "minCountImpacted": 1,
              "minPercentImpacted": null,
              "minIncidentDurationMinutes": 5
            },



      Sample Code (Python)

      import requests
      import json

      """
      First step in using 7SIGNAL API is to exchange your key and secret for a JWT token.
      This is accomplished with an OAuth request
      """
      auth_data = {
          "client_id": "62CAF473.your_key_here.XMXQS",
          "client_secret": "fKKPuynq.your_secret_here.FlFjZupS",
          "grant_type": "client_credentials", "scope":
          "openid https://login.7signal.com/scopes/user.read https://login.7signal.com/scopes/user.admin"
      }

      auth_headers = {"Accept": "application/json"}
      token_exch_response = requests.post('https://api-v1.7signal.com/oauth2/token', data = auth_data, headers = auth_headers)
      token_exch_json_response = token_exch_response.json()

      # This token can now be used for subsequent requests. Note the token will expire.
      token = token_exch_json_response["access_token"]


      """
      Once a token is aquired, it can be used to make calls to the API.
      This is done using an Authorization header with a Bearer token.
      """
      headers_incidents = {
          "Accept": "application/json",
          "Authorization": f"Bearer {token}"
      }
      incidents_response = requests.get('https://api-v1.7signal.com/incidents/agents', headers = headers_incidents)
      incidents_json = incidents_response.json()


      # Pretty print the JSON response to the console
      incidents_json_formatted = json.dumps(incidents_json, indent = 2)
      print()
      print(incidents_json_formatted)
